Example 18: Custom Sparse Array — transform() and 3-D Plane Slices

Assembles a 64-element sparse spiral array with CustomTransducer, mounts it tilted over the target with transform(), refocuses electronically, and visualises the field on three orthogonal planes in 3-D — the pattern to use when the volume of interest is too large to sample fully.

What you will learn

  • CustomTransducer from one mono-element template + position list
  • Rigid repositioning with transform(T_matrix) (rotation + translation in mm)
  • Why delays must be recomputed after a move, and why the simulator needs sim.set("transducer", tx) to see the new pose
  • Plane-slice 3-D visualisation: create_2Dimage_mesh + add_2D_image

Output

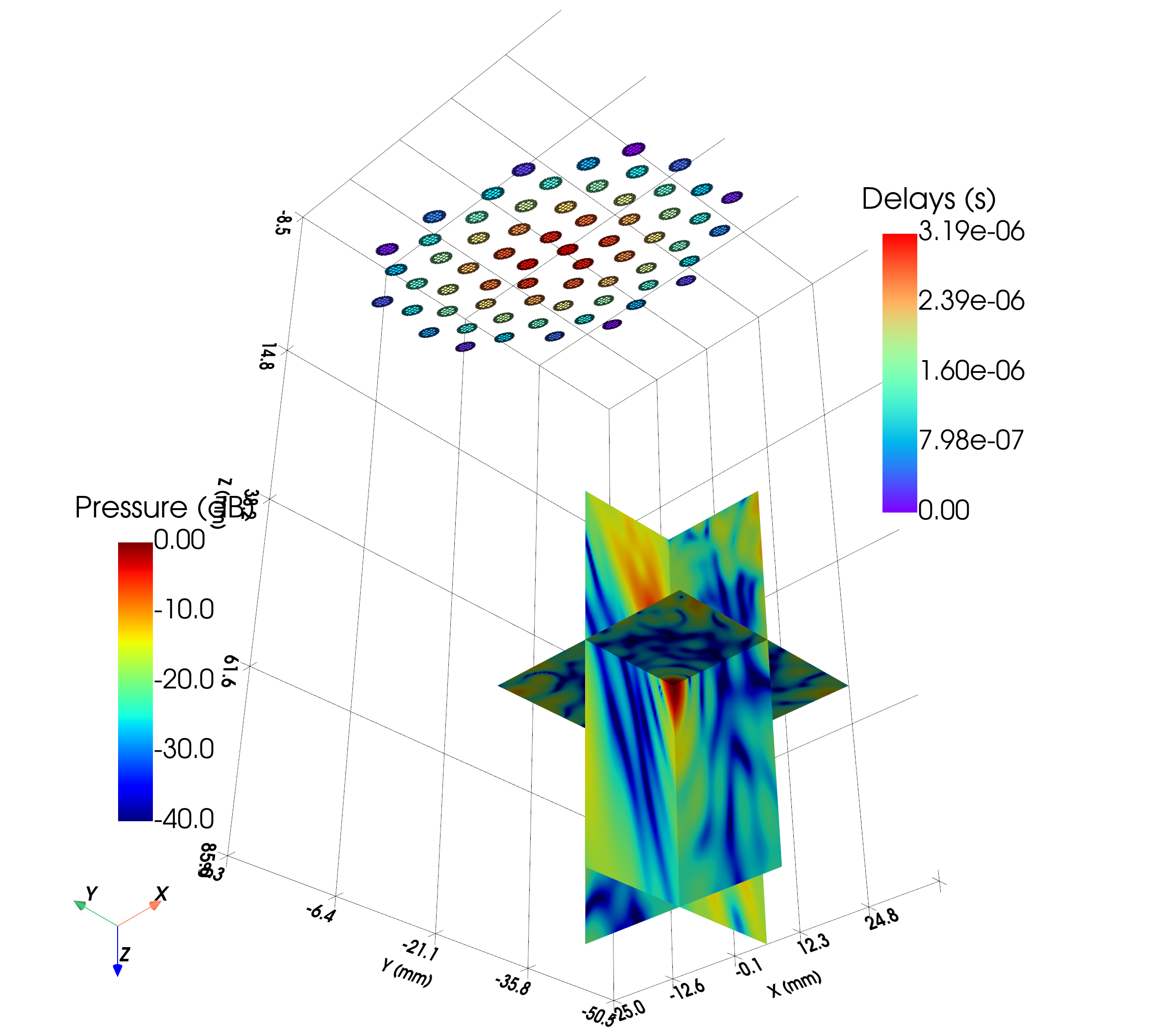

Sparse spiral array with three field planes

Run it

uv run examples/example18_customtransducer_3Dplanes.py

Key code

from esdiva.transducers import CustomTransducer, FlatCircularTransducer
from esdiva.emission import Emission
from esdiva.plotting import add_2D_image, add_transducer_mesh, create_2Dimage_mesh

disc = FlatCircularTransducer(diameter_mm=3.0, no_sub_diameter=6, frequency_Hz=1e6)
tx = CustomTransducer(elements=[disc] * 64, positions_mm=spiral_positions_mm,
                      frequency_Hz=1e6)

sim = Emission(tx, monochromatic=True)

tx.transform(T_tilt_and_shift)          # rigid move (4×4, translation in mm)
tx.compute_delays(focus_mm=target_mm)   # refocus from the new pose
sim.set("transducer", tx)               # refresh the simulator's snapshot

p_xz, c_xz = sim(plane_xz)              # one call per orthogonal plane

mesh = create_2Dimage_mesh(p_db, extent=(x0, x1, z0, z1), plane_offset={"y": 0})
plotter = add_2D_image(mesh, cmap="jet", clim=[-40, 0])
plotter = add_transducer_mesh(tx.get_mesh(), plotter=plotter, scalars="Delays")
