Example 3: Multi-element Transducers — 3-D Visualisation

Computes a monochromatic focused pressure field for both a linear array (Domino) and a matrix array (Zeus_Matrix), then renders the transducer geometry and pressure volume together in 3-D using PyVista.

What you will learn

  • Simulating focused fields for linear and matrix arrays side by side
  • Building volumetric pressure meshes with create_3Dvol_mesh
  • Composing 3-D scenes with add_transducer_mesh and add_pressure_vol
  • Controlling PyVista camera positions and grid annotations

Output

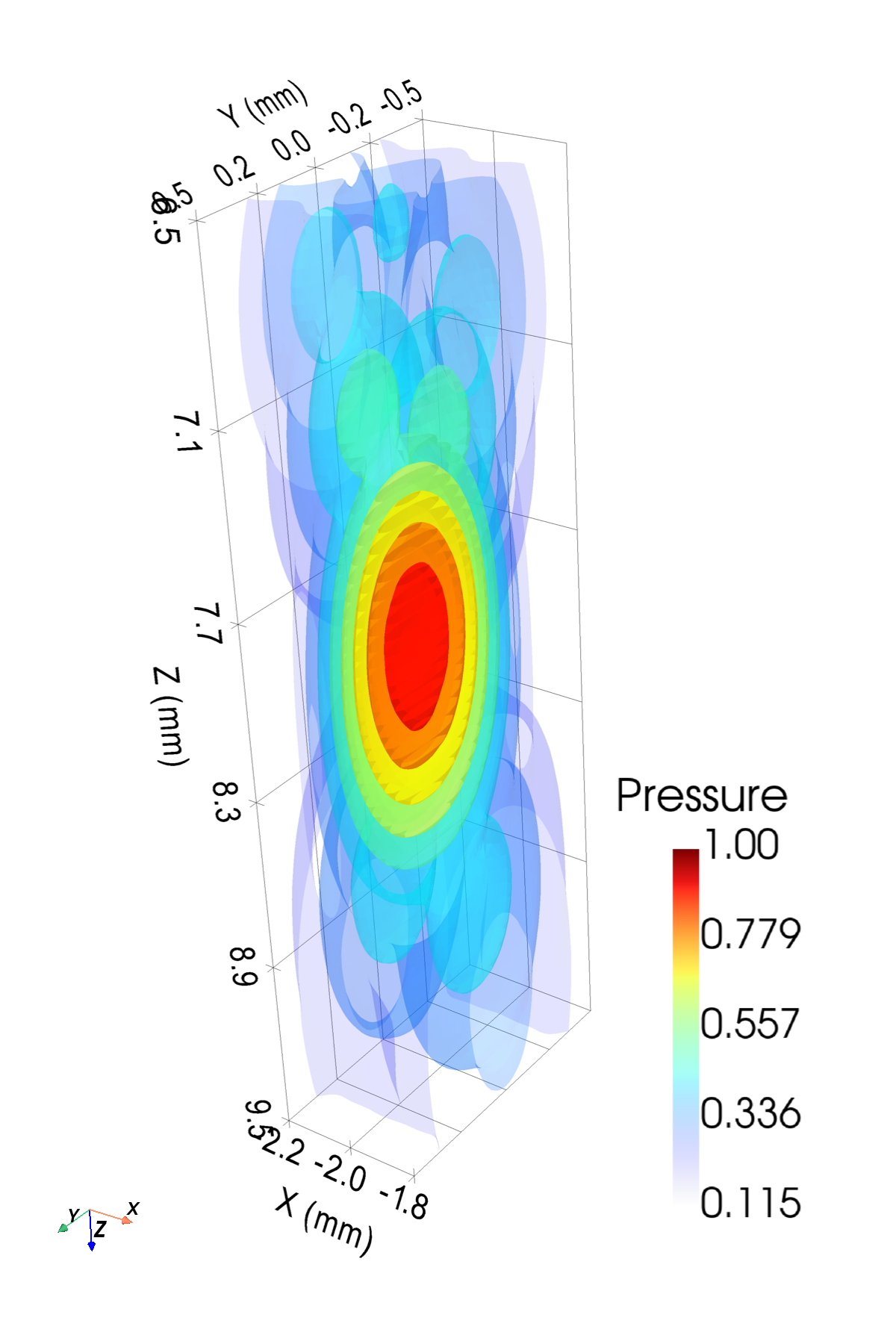

Linear array 3-D scene Linear array pressure volume Matrix array 3-D scene Matrix array pressure volume

Run it

uv run examples/example03_multielements_monochromatic_CW.py

Key code

from esdiva.transducers import Domino
from esdiva.emission import Emission
from esdiva.plotting import add_pressure_vol, add_transducer_mesh, create_3Dvol_mesh

probe = Domino()
probe.compute_delays(focus_mm=[-2, 0, 8])
probe.compute_apodization(focus_mm=[-2, 0, 8], FoverD=1)

sim = Emission(probe, monochromatic=True)
p, coords = sim(field_point_mm, method="auto")

# Build PyVista meshes
tx_mesh = probe.get_mesh()
pr_mesh = create_3Dvol_mesh(p / p.max(), coords["x"], coords["y"], coords["z"], scalars="Pressure")

# Render
plotter = pv.Plotter()
plotter = add_pressure_vol(pr_mesh, plotter=plotter)
plotter = add_transducer_mesh(tx_mesh, plotter=plotter)
plotter.show()
