Example 16: Parametric Surface Subdivision in rectangular patches (for transducers)¶

Demonstrates subdivide_parametric_surface, the public utility that tiles any C1 parametric surface with flat tangent-plane rectangles — the patch representation the SIR kernel requires, and the machinery behind the curved circular transducers.

The example uses an ellipsoidal cap — a surface with strong curvature variation from centre to rim — to show how patches follow the local tangent plane and how border_refine controls how closely the mosaic follows the aperture boundary.

Source on GitHub

Step 1 — Define the surface¶

import numpy as np
from esdiva.utilities.surface_subdivision import subdivide_parametric_surface

# Ellipsoidal cap: z(x, y) = c * sqrt(1 - x²/a² - y²/b²)
a, b, c = 30e-3, 20e-3, 15e-3   # semi-axes in metres
R_ap = 15e-3                      # aperture radius (circular mask)

def ellipsoid_cap(x, y):
    arg = max(1.0 - (x / a) ** 2 - (y / b) ** 2, 0.0)
    return np.array([x, y, c * np.sqrt(arg)])

Any (u, v) → ndarray(3,) function works here — no analytic derivatives required.

Step 2 — Subdivide¶

frames = subdivide_parametric_surface(
    ellipsoid_cap,
    u_range=(-R_ap, R_ap),
    v_range=(-R_ap, R_ap),
    n_u=10, n_v=10,
    inside_fn=lambda x, y: x ** 2 / a ** 2 + y ** 2 / b ** 2 <= 1.0,
    normal_sign=1.0,
    border_refine=3,
)

Cells cut by the aperture boundary (inside_fn mixed across the cell corners) are subdivided into border_refine² = 9 sub-patches, so the mosaic follows the elliptical rim closely without wasting patches in the interior.

Step 3 — Inspect the output¶

# frames is a dict with keys:
#   'corners'    — list of (4,3) arrays, one per patch (corner vertices in metres)
#   'centers'    — (M,3) patch centres on the surface
#   'normals'    — (M,3) unit outward normals
#   'tangents_u' — (M,3) first tangent axis
#   'tangents_v' — (M,3) second tangent axis (orthogonal to normal and tu)
#   'wu', 'wv'   — (M,) half-widths of each patch (metres)
#   'el_idx'     — (M,) element index per patch (all 0 for single-element)
#   'coverage'   — fraction of theoretical surface area covered by patches

print(f"Patches accepted: {frames['centers'].shape[0]}")
print(f"Coverage        : {frames['coverage']:.1%}")

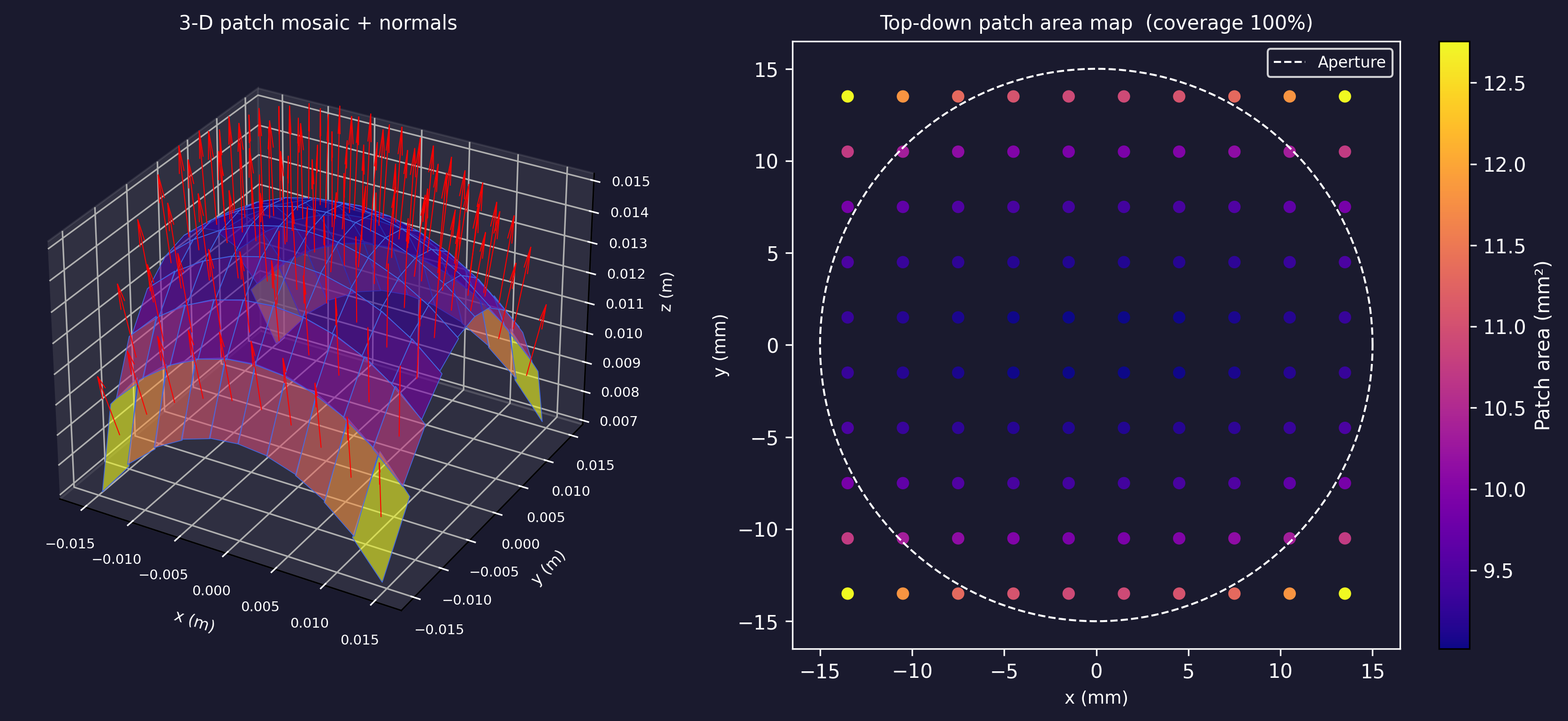

Step 4 — Matplotlib: 3-D mosaic + top-down area map¶

The left panel shows each flat rectangular patch in its local tangent plane, coloured by area. Outward normals are drawn as red arrows. The right panel is a top-down scatter plot showing how patch centres distribute across the circular aperture.

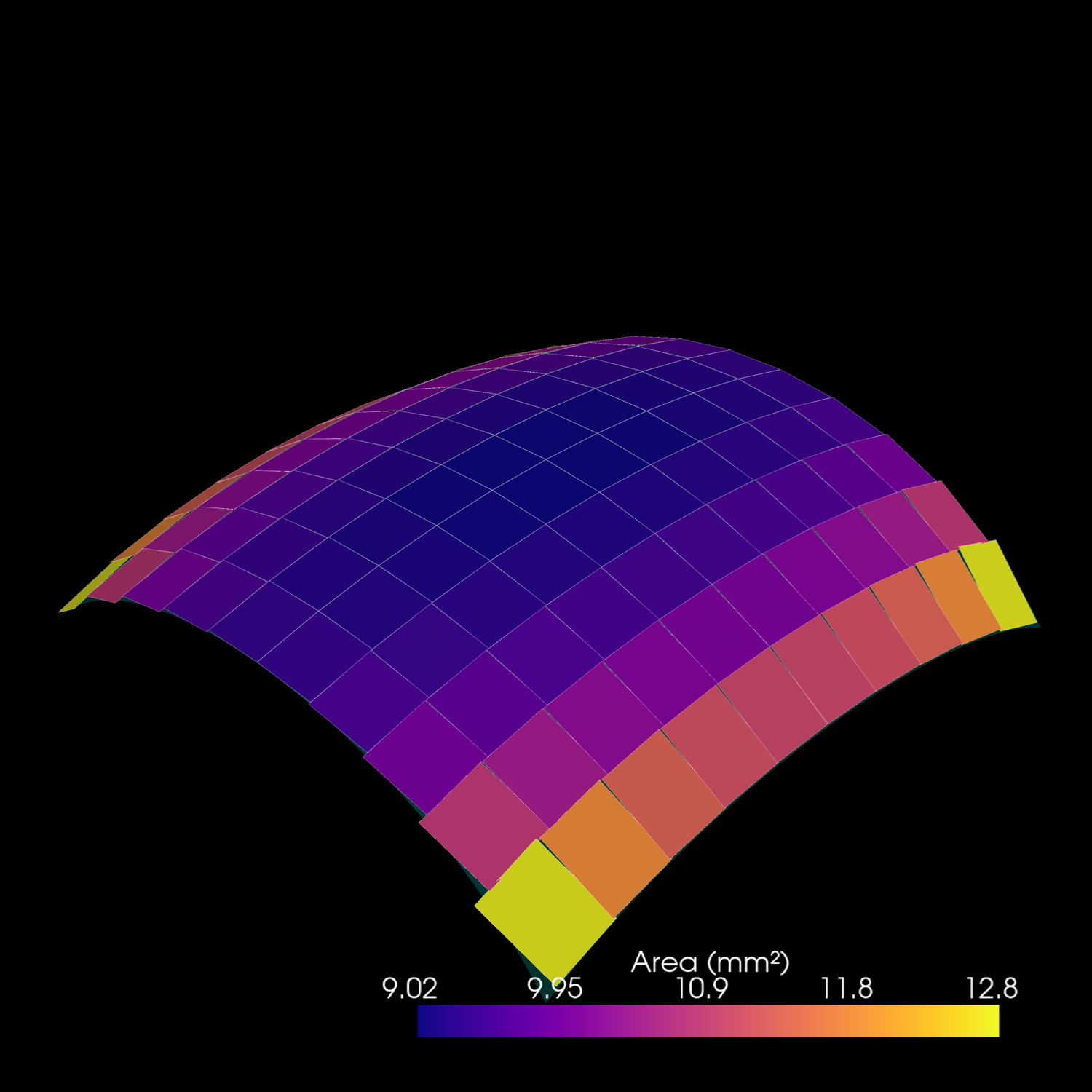

Step 5 — PyVista: theoretical surface vs flat patch mosaic¶

The flat patch mosaic (coloured by area) with the theoretical surface as a semi-transparent cyan overlay. The slight mismatch between patches and surface near the rim is why the coverage metric can exceed 100 %: flat tangent-plane patches lift slightly above the curved surface and their areas sum to more than the actual curved area.

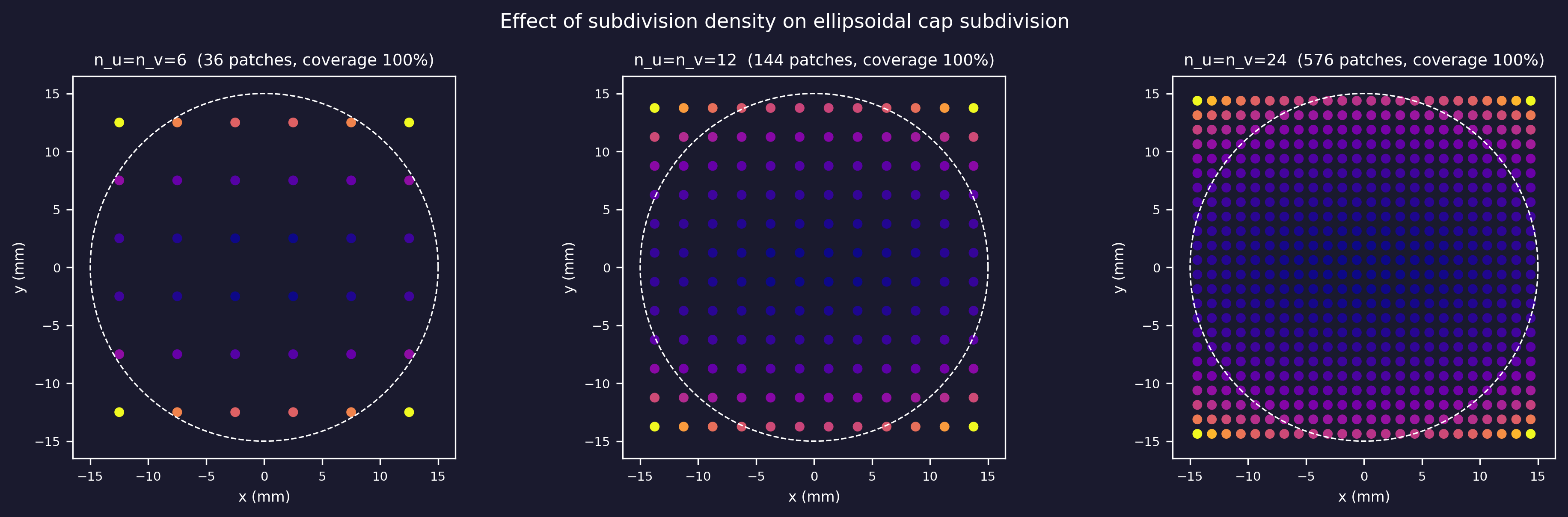

Step 6 — Effect of subdivision density¶

Running the same subdivision at n_u = n_v = 6, 12, and 24 shows the accuracy knob of the SIR method: each flat patch must stay inside the far-field limit w << sqrt(4·l·c/f), so a denser grid follows the curved surface more faithfully at the cost of more patches (and SIR evaluations):
